Einzelheiten zu den Produkten

Zu Hause Produits

Blattperforierungsmaschine

Plaster Board Gypsum Board Cement Board Holes Punching Line Holes Making Machine

Name

Plaster Board Gypsum Board Cement Board Holes Punching Line Holes Making Machine

Markenbezeichnung:	LVJOE
Modellnummer:	LV-CK01
MOQ:	1 Satz
Preis:	US $20000-80000
Zahlungsbedingungen:	L/C, T/T
Versorgungsfähigkeit:	50 Sätze pro Jahr

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

China

Zertifizierung:

ISO CE

Produktname:

Gipsplatte Gipsplatte Zementplatte Löcher Stanzlinie Löchermachmaschine

Schlüsselwort:

Kleinunternehmer-Gelegenheit abgehängte Deckenplatten-Perforiermaschine Perforierte Gips-Trockenbaup

Druck:

80T, 160T, 200T

Verwendung:

Gipsplatten, MDF, HPL, Perforation von Faserzementplatten

Muster:

Rund, Quadrat, Oval, Sechseck, unregelmäßig

Breite der Perforation:

1220 mm

Geschwindigkeit:

50 Mal pro Minute

Gesamtgröße:

2300*1500*2300 ((H*L*W)

Verpackung Informationen:

PE-Folienverpackung

Versorgungsmaterial-Fähigkeit:

50 Sätze pro Jahr

Hervorheben:

gypsum board perforation machine

,

cement board hole punching line

,

plaster board holes making machine

Beschreibung des Produkts

Plaster Board Gypsum Board Cement Board Holes Punching Line Holes Making Machine

Product Specifications

Attribute	Value
Product Name	Plaster Board Gypsum Board Cement Board Holes Punching Line Holes Making Machine
Pressure Options	80T, 160T, 200T
Material Compatibility	Gypsum Board, MDF, HPL, Fiber cement board perforation
Available Patterns	Round, Square, Oval, Hexagonal, Irregular
Width of Perforation	1220mm
Operation Speed	50 times/minute
Overall Dimensions	230015002300 (HLW)

Technical Specifications

Punching pressure: 200 ton
Stroke: 30 mm
Max mold height closed: 260mm
Number of strokes: 50 times/minute
Slide surface: 210*1100mm
Working table: 300*1670mm
Spacing of both pole: 1350mm (loads max board width 1220mm)
Power of main motor: 22kw
Power of servo motor: 2.6kw (brand: Zhejiang yifeng)
Feeding accuracy: ±1mm
Maximum feeding rate: 100mm
Maximum feeding thickness: 20mm
Gross weight: 11000kg
Overall dimension: 2300*1500*2300 (H*L*W)

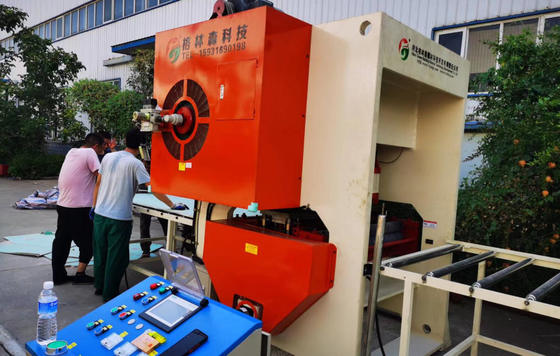

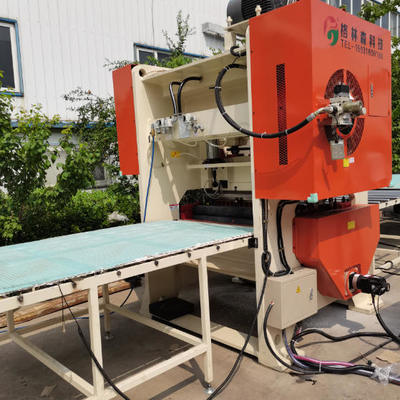

Structure and Configuration: Body of the main machine is welded with Q235 steel plate. H type gantry structure.

Feeding System Configuration

Servo motor controlled feeding device

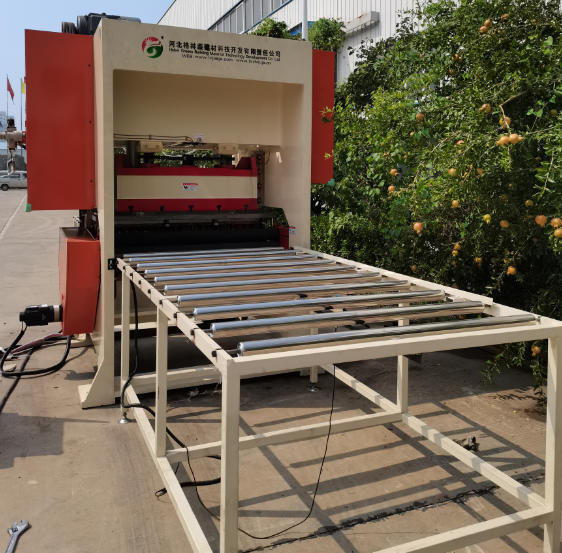

Front and rear roller conveyor (3000mm each)
Unilateral positioning for easy operation and high frequency

Electric Control System

Central cabinet control
LCD touch screen digital input
Controls feeding, punching, and operation
5.7-inch color LCD touch screen

Applications

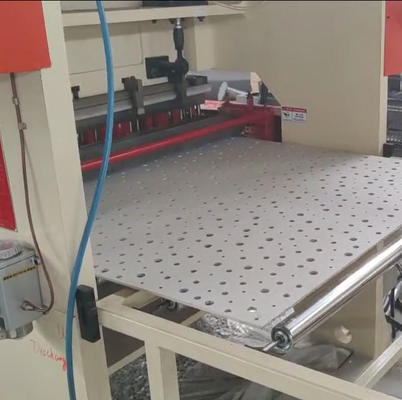

This perforation machine is used to create holes in gypsum ceiling board, MgO board, MDF, HDF, Fiber cement board, and metal sheets.

Available Perforation Patterns

Custom perforating mold designs available. Our company maintains a punching pattern database to provide technical support for customers, including:

Round hole
Square hole
Oval hole
Round/oval cross
Hexagonal hole
Irregular hole

Plaster Board Gypsum Board Cement Board Holes Punching Line Holes Making Machine 0
