Mineral Rock Wool Production Line with 380V/50Hz Power Supply 1 Year Warranty and Class A1 Fire Resistance

Mineral Rock Wool Production Line with 380V/50Hz Power Supply 1 Year Warranty and Class A1 Fire Resistance

Markenbezeichnung:	Greens
Modellnummer:	Produktionslinie für Steinwolle
MOQ:	1
Preis:	US $2000000-4000000
Zahlungsbedingungen:	TT, LC

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

China

Produktname:

Maschinen zur Herstellung anderer Baumaterialien. Mineralische Steinwolle-Produktionslinie

Stichwort:

Produktionslinie für Mineralsteinwolle

Hauptprozess:

Rohstoffversorgungssystem, Schmelzsystem (Kuppelöfen), Faserformungssystem, Woll-Sammel- und Zuteilu

Rohstoffe:

Basalt, Dolomit und Schlacke

Kontrollsystem:

SPS

Stromversorgung:

380 V/50 Hz

Installation:

Ingenieure stehen für die Wartung von Maschinen im Ausland zur Verfügung

Garantie:

1 Jahr

Verpackung Informationen:

Holzkiste Verpackung

Hervorheben:

380V/50Hz Mineral Rock Wool Production Line

1 Year Warranty Rock Wool Board Production Line

Class A1 Fire Resistance Mineral Wool Board Production Line

Beschreibung des Produkts

Mineral Rock Wool Production Line Factory

Production Process Overview

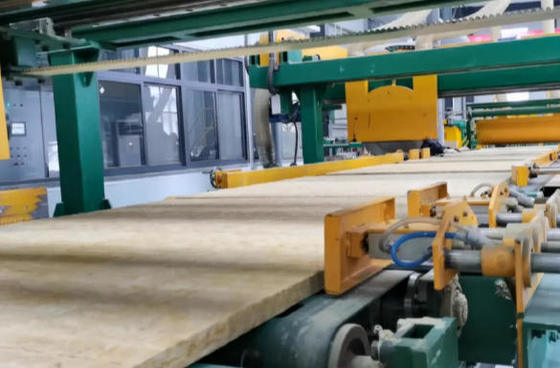

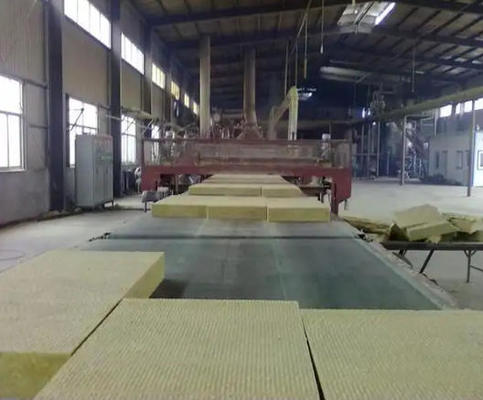

The rock wool production process begins with raw materials including basalt, dolomite, and binders. These materials are loaded into the hopper via elevator and melted in a furnace. The molten lava flows into a tank, where it's cooled and spun into fibers by a centrifuge. During fiber formation, binders are sprayed into the fiber molding chamber while negative pressure wind helps shape the fibers. The resulting fiber mat is transported via mesh belt to a pendulum cloth machine, then through a curing furnace where hot air solidifies the material. The final product undergoes precision cutting (both longitudinal and transverse) before packaging and storage.

Primary Applications

Rock wool is extensively used for fireproofing and sound absorption in partition/curtain walls, thermal insulation for roofs and retaining structures, geothermal systems, and industrial applications including kilns, ovens, and large tanks/vessels requiring both insulation and fire resistance.

Product Specifications

Width: 1,000mm or 1,200mm
Length: 1,000mm (adjustable)
Thickness: 30-150mm
Density: 40-200kg/m³

Technical Parameters

Parameter	Value
Fiber diameter	5-8um
Shot content	6-8%
Max. application temperature	600°C
