Fully Automatic PIR Sandwich Panel Production Line for 40-300 mm Thickness and 950-1200 mm Width Roof & Wall Panels

Fully Automatic PIR Sandwich Panel Production Line for 40-300 mm Thickness and 950-1200 mm Width Roof & Wall Panels

Markenbezeichnung:	Greenson
MOQ:	1
Preis:	$790000
Zahlungsbedingungen:	L/C, T/T

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

hebei

Produktname:

Vollautomatische PIR-Sandwichplatten-Produktionslinie für Dach und Wand

Stichwort:

Kontinuierliche Isolierung PU-PIR-Sandwichplatten-Produktionsmaschinenlinie

Farbe:

Kundenanforderung

Besonderheit:

Vollautomatisch

Verpackung Informationen:

Kunststofffolie

Versandhafen:

TianJin

Kernkomponenten:

PLC, Maschine, Lager, Motor, Pumpe

wichtige Verkaufsargumente:

Einfach zu bedienen

Anwendung:

Dach und Wand

Stromspannung:

380 V, 50 Hz, 3 Phasen (je nach Bedarf änderbar)

Beschreibung des Produkts

Fully Automatic PIR Sandwich Panel Production Line For Roof & Wall

Product Overview

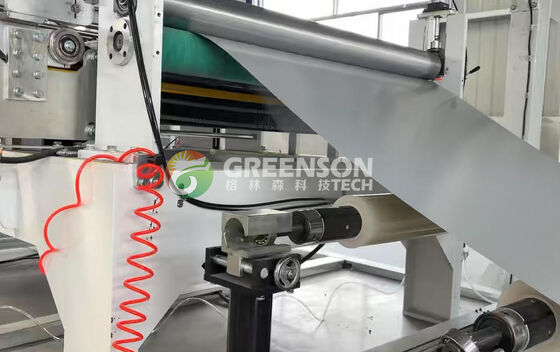

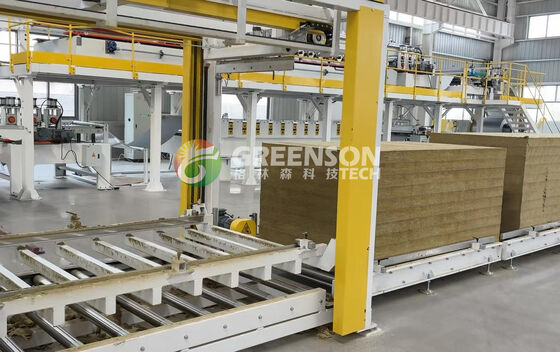

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.

The entire line is independently developed, processed, and assembled, using solid materials with high safety standards. Equipped with precision machining equipment, it features the flattest dual-track plates in the country to ensure optimal quality and efficiency. The fully automated system reduces labor costs by at least 50%.

Production Process

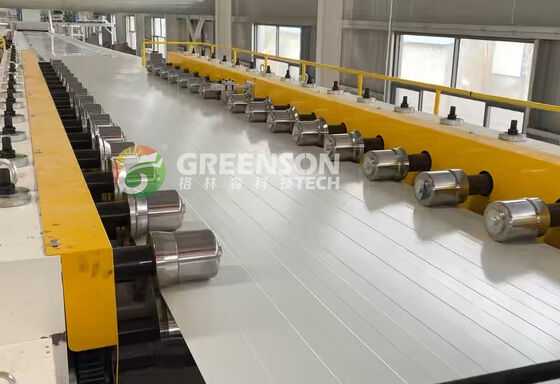

Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
Precision low-speed metering pump with computer-controlled frequency regulation
Accurate dosing and stepless speed adjustment capabilities

Product Capabilities

Produces various flat and corrugated sheet types
Sandwich panels: thickness 40-300 mm, width 950-1200 mm
High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials

Technical Specifications

Material Type	Color steel sheet; Galvanized sheet; Aluminum sheet
Material Thickness	0.3-0.8 mm
Material Width	≤1250 Mpa
Suitable Panel Length	2000-18000 mm
Suitable Panel Width	500-1200 mm
Suitable Panel Thickness	30-250 mm (excluding corrugation height)
Production Speed	3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor	12000-42000 mm
Work Pressure on Pouring Foam	150-200 Bar
Total Power	660 kW / 300 kW
Total Dimensions	130000 × 15000 × 6000 mm (Length × Width × Height)
