PUF PIR PU Rock Wool Sandwich Panel Machine Production Line with 3-15m/min Adjustable Speed 40-300mm Thickness and 950-1200mm Width

PUF PIR PU Rock Wool Sandwich Panel Machine Production Line with 3-15m/min Adjustable Speed 40-300mm Thickness and 950-1200mm Width

Markenbezeichnung:	Greenson
MOQ:	1
Preis:	$790000
Zahlungsbedingungen:	L/C, T/T

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

HEBEI

Produktname:

PUF PIR PU-Steinwolle-Sandwichplatten-Maschinen-Produktionslinienhersteller

Stichwort:

Maschinen zur Herstellung von PU-PIR-Platten, Maschinen zur Herstellung von Polyurethan-Sandwichplat

Herkunftsort:

Hebei, China

Farbe:

Kundenanforderung

OEM:

Besonderheit:

Vollautomatisch

Verpackung Informationen:

Kunststofffolie

Versandhafen:

Tianjin

Anwendung:

Wände, Dächer und Trennwände

Verwenden:

Bauisolierende Materialien

Beschreibung des Produkts

PUF PIR PU Rock Wool Sandwich Panel Machine Production Line Manufacturer

Product Overview

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.

Production Process

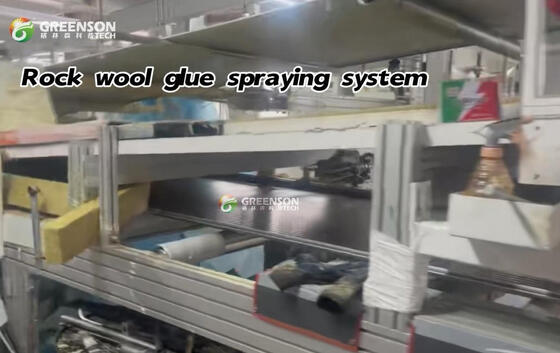

Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
Precision low-speed metering pump with computer-controlled frequency regulation
Accurate dosing and stepless speed adjustment capabilities

Product Capabilities

Produces various flat and corrugated sheet types

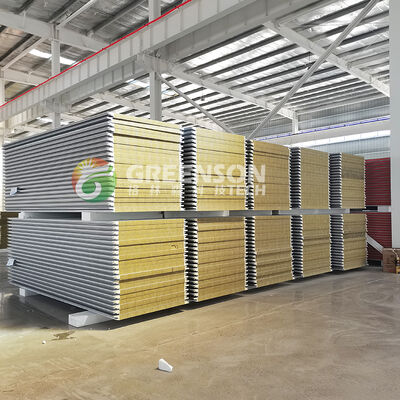

Sandwich panels: thickness 40-300 mm, width 950-1200 mm
High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials

Technical Specifications

Material Type	Color steel sheet; Galvanized sheet; Aluminum sheet
Material Thickness	0.3-0.8 mm
Material Width	≤1250 Mpa
Suitable Panel Length	2000-18000 mm
Suitable Panel Width	500-1200 mm
Suitable Panel Thickness	30-250 mm (excluding corrugation height)
Production Speed	3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor	12000-42000 mm
Work Pressure on Pouring Foam	150-200 Bar
Total Power	660 kW / 300 kW
Total Dimensions	130000 * 15000 * 6000 mm (Length * Width * Height)
