Fully Automatic High Capacity 3-15m/min PU/PIR/EPS Sandwich Panel Production Line for Insulation Panels

Fully Automatic High Capacity 3-15m/min PU/PIR/EPS Sandwich Panel Production Line for Insulation Panels

Markenbezeichnung:	Greenson
MOQ:	1
Preis:	$700000-$800000
Zahlungsbedingungen:	L/C, T/T

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

HEBEI

Produktname:

Kontinuierliche automatische Produktionslinie für PU/PIR/EPS-Sandwich-Isolierplatten mit hoher Kapaz

Stichwort:

Maschine zur Herstellung von PU-Sandwichplatten für Kühlräume mit CE

Farbe:

Kundenanforderung

Besonderheit:

Vollautomatisch

Versandhafen:

Tianjin

Kernkomponenten:

SPS, Motor, Lager, Motor, Pumpe

Dicke der fertigen Sandwichplatte:

2000–16000 mm

Typ:

Farbiges Stahlblech, verzinktes Aluminiumblech

Leistung:

660 kW/300 kW

Verwenden:

Bauisolierende Materialien

Beschreibung des Produkts

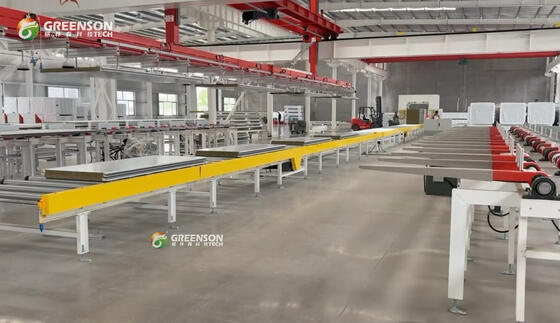

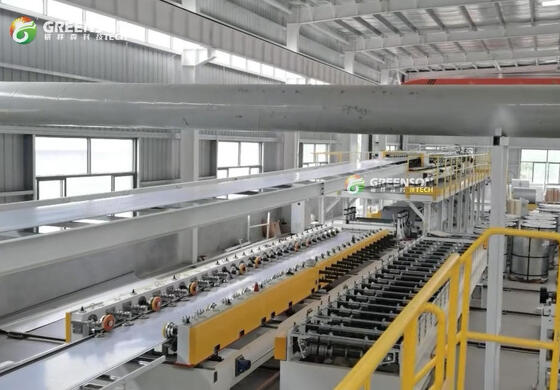

Continuous Automatic High Capacity 3-15m/min PU/PIR/EPS Sandwich Insulation Panel Wall Production Line

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.

Product Applications

The stone wool sandwich panel is widely used for steel structure workshops, roofs of simple and movable houses, wall bodies, suspended ceilings of air purification rooms, and separation. Rigid polyurethane foam has been recognized as the best building thermal insulation material internationally, offering low heat conductivity and high bending resistance capacity.

This rigid polyurethane foam doesn't absorb water or decay, and it cannot be damaged by insects and mice. It has good fire resistance and a wide scope of heat resistance. With the physical properties of polyurethane PU and our unique prescription, we combine high-temperature polyurethane with coating steel panels to achieve compact forming.

Production Process

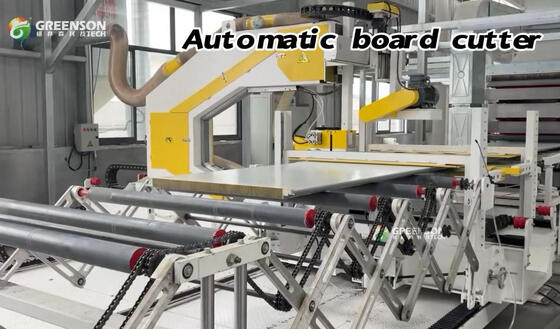

Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
Precision low-speed metering pump with computer-controlled frequency regulation
Accurate dosing and stepless speed adjustment capabilities

Product Capabilities

Produces various flat and corrugated sheet types

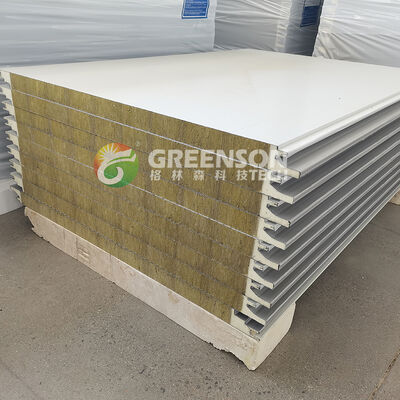

Sandwich panels: thickness 40-300 mm, width 950-1200 mm
High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials

Technical Specifications

Material Type	Color steel sheet; Galvanized sheet; Aluminum sheet
Material Thickness	0.3-0.8 mm
Material Width	≤1250 Mpa
Suitable Panel Length	2000-18000 mm
Suitable Panel Width	500-1200 mm
Suitable Panel Thickness	30-250 mm (excluding corrugation height)
Production Speed	3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor	12000-42000 mm
Work Pressure on Pouring Foam	150-200 Bar
Total Power	660 kW / 300 kW
Total Dimensions	130000 × 15000 × 6000 mm (Length × Width × Height)

Schlagworte:

PUF PIR PU Rock Wool Sandwich Panel Machine Production Line with 3-15m/min Adjustable Speed 40-300mm Thickness and 950-1200mm Width
